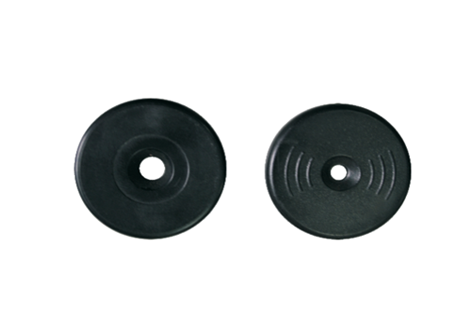

HF anti-metal round coin tag
Metal resistant, waterproof, shock - proof, durable
Moisture resistance, corrosion resistance, suitable for harsh environment
Round coin, middle hole can be fixed on the object with screws
Product features
Specification
Application
◆ Dimensions: Φ30 mm ◆ Frequency: 13.56MHz ◆ Agreement: ISO 14443 A/B or ISO 15693 ◆ Resistance to metal design, high sensitivity, excellent physical properties ◆ ABS engineering material packaging, ultrasonic sealing, completely sealed
Product Model
WT-62
Operating Frequency
13.56MHz
Air Interface Protocol
ISO 14443 A/B or ISO
15693
Diameter: 30 mm ± 0.5 mm
Dimensions
Centre hole: 5 mm
Thickness: 4.5 mm ± 0.3 mm
Tag Materials
ABS
Read Distance
＞3cm （Depends on reader）
Data Preservation
＞10 years
Work Mode
Read / Write
Operating Temperature
-25℃ to +50℃
Ambient Temperature
-40℃ to +70℃
♦ Suitable for the application of high frequency near - range identification
♦ Suitable for high frequency applications in harsh environments
♦ Suitable for high frequency metal surface applications
