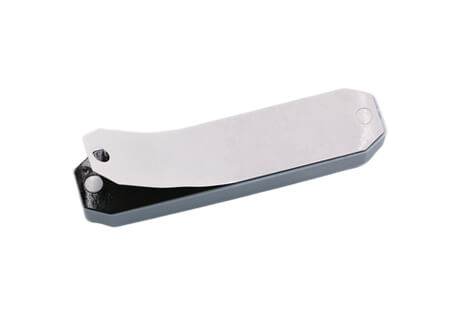

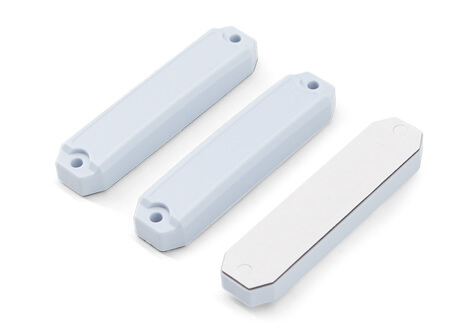

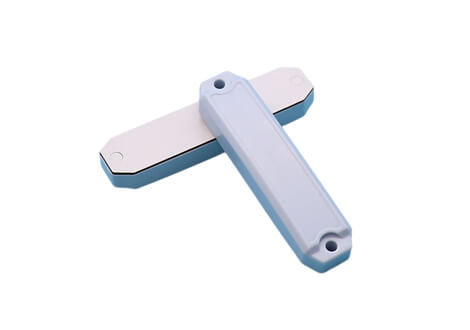

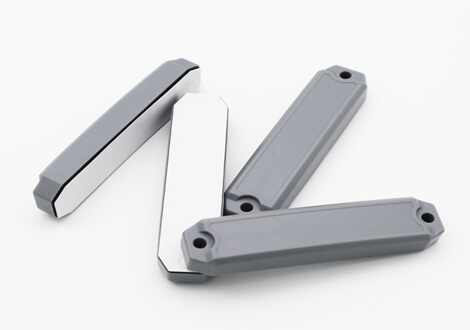

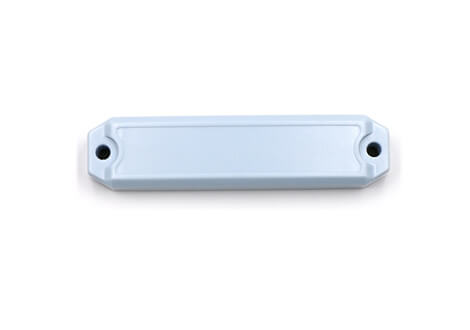

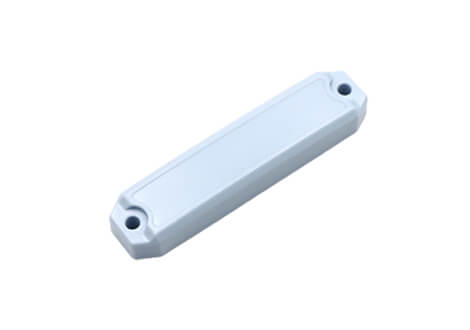

WT-100

UHF Anti-Metal Tag

•  The tag is tuned to have specifically good on-metal functionality together with the slim structure. Besides having the high level RF performance enclosed in the durable outdoor resistant encapsulation, one of the key design targets for the product was to enable relatively wider radiation pattern for the tag.

•  It is specially designed for extreme environments with high requirements for read-write distance and durability. The high performance of the label also improves the accuracy of reading.

•  The personalized service of the label makes it possible to print bar codes and other readable numbers on the top of the RFID label.This enables the parallel use of two different identification systems. This is required in many cases to be able to do pilots and limited implementations.

Product features
Specification
Application
    Dimensions:  85 × 25 × 11mm

    ◆ Operating Frequency:  865MHz-868MHz / 902MHz-928 MHz

    ◆ Air Interface Protocol:  EPCglobal Class 1 Gen 2(ISO 18000-6C)

    ◆ Linear polarization design, high label recognition sensitivity, so that the label reading rate is high

    ◆ Can be divided into two frequency bands (European frequency, American frequency), using the high-performance  chip, to achieve the best reading effect.

    ◆ The tag can be easily installed on the metal surface with screws, rivets or industrial adhesives

    ◆ To meet the different needs of customers, we can provide personalized choices, including surface printing electronic codes, patterns and text.
