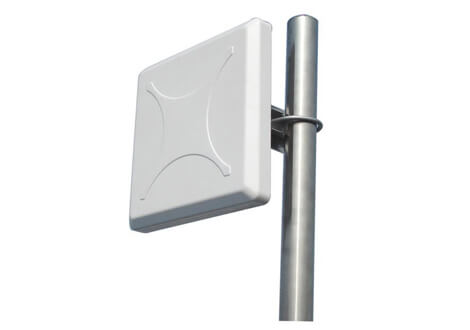

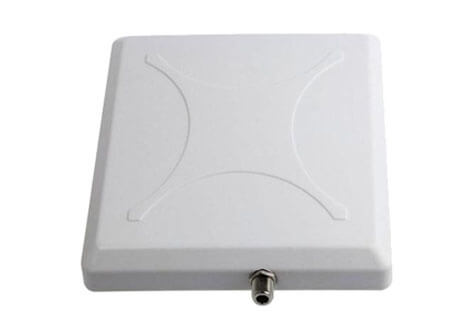

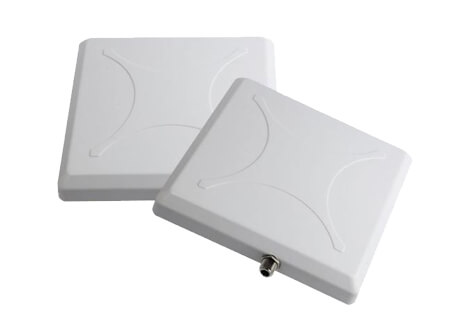

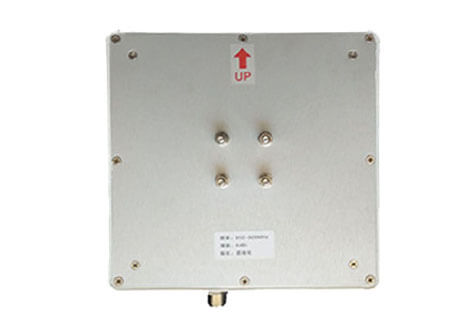

WA-908A
8dBi Circular Polarization Antenna
• Combining high-quality antenna design concepts, using unique radiation patterns, and combining various antenna materials to achieve a stable sensing effect for electronic tags.
• The antenna here have been specifically designed to be paired efficiently with our readers.
• These antenna also work with any RFID reader. and can provide higher performance for low power readers.
• All antenna work worldwide no need to worry about regions.
• We can supply you with ANY length custom cable with ANY type of connectors.
- Product features
- Specification
- Application
◆ Dimensions: 250 × 250 × 30mm Gain: 8dBi
◆ Operating Frequency: 865MHz - 868MHz / 902MHz - 928MHz
◆ Adopt circular polarization antenna design.
◆ Small Dimensions, light weight, compact size and strong.
◆ Universal antenna, with the advantages of directivity, large area, small blind area, etc.
◆ Beautiful appearance, precise design, firm structure, high IP protection level.
◆ It can meet the harsh outdoor working environment without fear of sun and rain.
◆ Regardless of the label orientation, it has a very powerful reading ability.
Product Model
|
|
WA-908A
|
Operating Frequency
|
|
865MHz -
868MHz/902MHz - 928MHz（Customizable）
|
Gain
|
|
8dBi
|
Polarization
|
|
Circular Polarization
|
Dimensions
|
|
225 × 225 × 30mm
|
Vertical/Elevation Beamwidth
|
|
68°
|
Horizontal/Azimuth Beamwidth
|
|
68°
|
Impedance
|
|
50Ω
|
VSWR
|
|
≤1.3
|

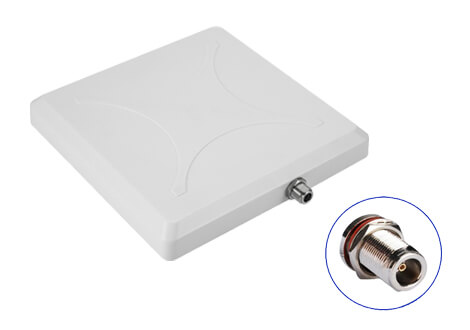

Connector
|
|
N （Female）
|
Radome Material
|
|
ABS
|
Operating Temperature
|
|
-40℃ to +80℃
|
Lightning Protection
|
|
DC Grounded
|
Weight
|
|
0.8kg
|
♦ Suitable for mid-range reading environments
♦ Suitable for range reading requirements in production line
♦ It can be applied to environments with high requirements for multi-item recognition
♦ Suitable for middle distance automatic personnel identification
♦ Suitable for warehouse, materials, medicine management and other fields
