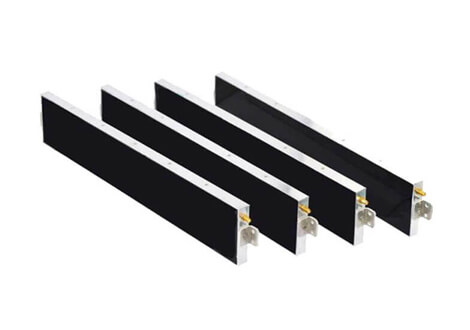

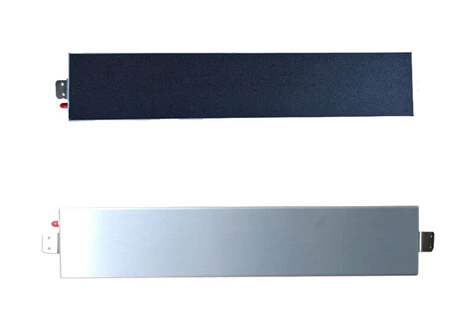

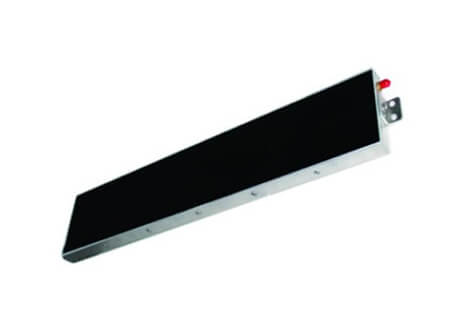

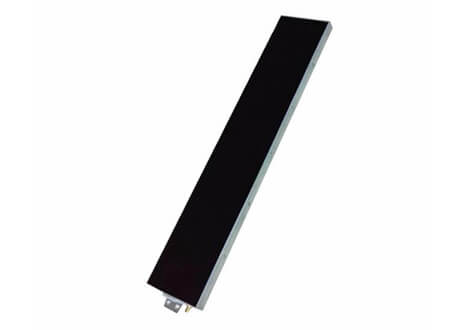

WA-905C

5.5dBi Linear Polarization Antenna

• Witark offers a range of dedicated antennas designed to meet the most challenging applications.

• With ultra-long far-field performance, its ultra-wide beam can maximize the coverage area, and is designed for area/door applications

• The antenna here have been specifically designed to be paired efficiently with our readers.

• These antenna also work with any RFID reader. and can provide higher performance for low power readers.

• All antenna work worldwide no need to worry about regions.

• We can supply you with ANY length custom cable with ANY type of connectors.

Product features

Specification

Application

◆ Dimensions: 465 × 90 × 18mm Gain: 5dBi

◆ Operating Frequency: 865MHz - 868MHz / 902MHz - 928MHz（Customizable）

◆ The antenna adopts Linear polarization design.

◆ Its super-wide beam can maximize the coverage area.

◆ The linear distribution of the head and tail makes the antenna provide a consistent and continuous reading area.

Product Model		WA-905C
Operating Frequency		865MHz - 868MHz/902MHz - 928MHz（Customizable）
Gain		5.5dBi
Polarization		Linear Polarization
Dimensions		465 × 90 × 18mm
Vertical/Elevation Beamwidth		72° ± 10°
Horizontal/Azimuth Beamwidth		90° ± 10°
Impedance		50Ω
VSWR		≤1.3

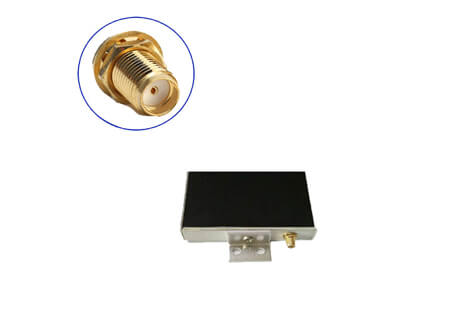

Connector		SMA （Female）
Radome Material		ABS + Aluminum
Operating Temperature		-40℃ to +80℃
Lightning Protection		DC Grounded
Weight		0.35kg
